Açıklama
ÜRÜN AÇIKLAMALARI

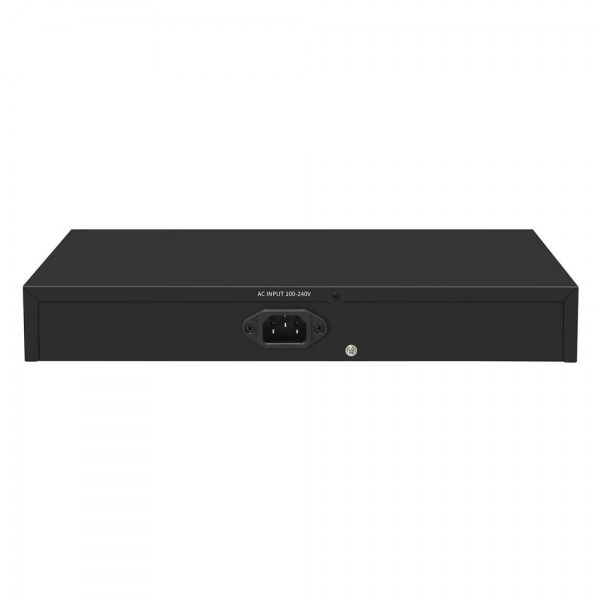

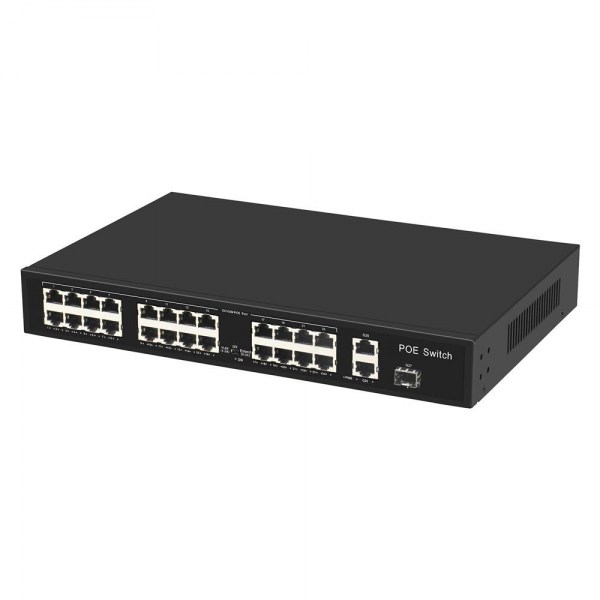

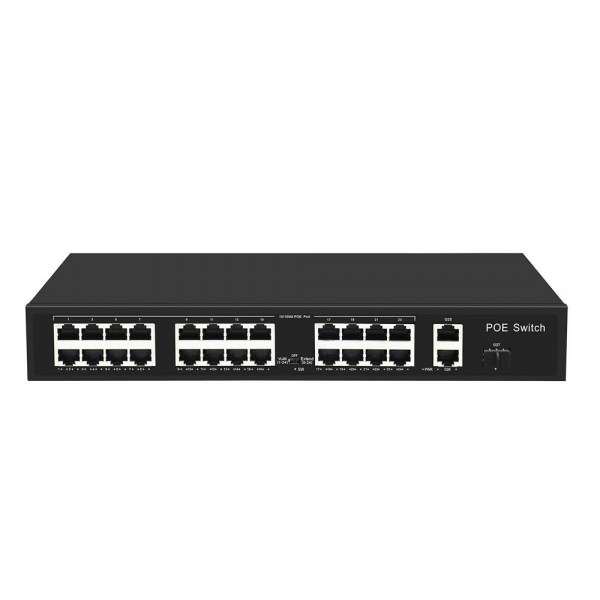

OPAX-2427 24 Port 10/100M POE Switch + 2 Port Gigabit Uplink +1 Gigabit SFP Port 300W Rack Mount
100Mbps 24 Port Unmanaged Ethernet POE Switch with Ethernet SFP Uplink for CCTV ethernet switch 24 ports 100mbps 24 port poe switch 24 port poe switch
| Model | OPAX-2427 | |||||||||
| Connector Type | 24*10/100M PoE Ports + 2*Gigabit EthernetUplink Ports +1*Gigabit SFP Uplink Port | |||||||||
| Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z |
|||||||||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | |||||||||
| Max each port: 15.4W (IEEE 802.3af) Max each port: 30W (IEEE 802.3at) |
||||||||||
| PoE compatibility: IEEE 802.3af/at adaptive | ||||||||||
| PoE port output: DC48-55V | ||||||||||
| Power Pin: Power over spare pairs 1/2(+), 3/6 (-) | ||||||||||
| Network Media | 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
|||||||||
| Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
|||||||||
| PerformanceSpecification | Bandwidth: 10.8Gbps | |||||||||
| MAC: 2K | ||||||||||
| Packet Buffer Memory: 1M | ||||||||||
| Packet Forwarding Rate: 8Mpps | ||||||||||
| Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V5.76A, Power Budget: 300W | |||||||||
| LED Indicator |
|
|||||||||
| Working Environment | Operating Temperature: -20? ~ 50?; Storage Temperature: -40? ~ 85?; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
|||||||||
| Physical Parameter | Product Dimension (L*W*H): 320mm*210mm*46mm Package Dimension (L*W*H): 370mm*275mm*85mm N.W: 1.9KG G.W: 2.4KG |
|||||||||
| Package Contents | 1. Ethernet Switch:1 unit 2. User Guide:1 unit 3. Warranty Card:1 unit 4. Power Cord:1 unit 5. 1U Rack Mount: 1 pair |
|||||||||
| MTBF | 100,000 hours | |||||||||
| Certification | CE, RoHS, FCC, CCC | |||||||||
| Warranty | 2 years |
