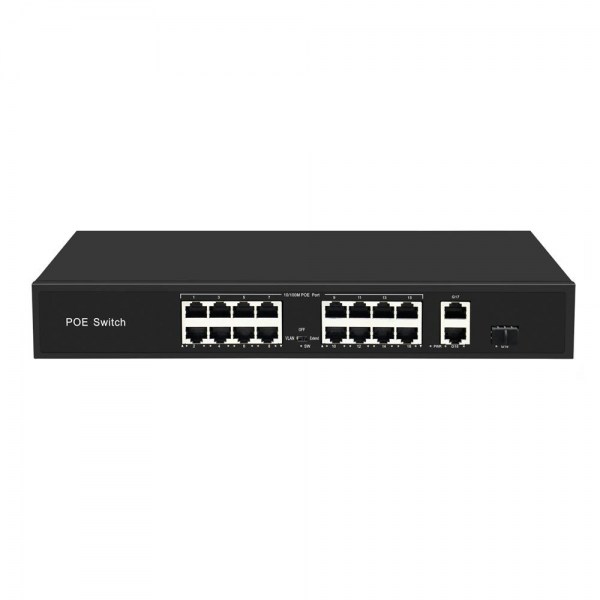

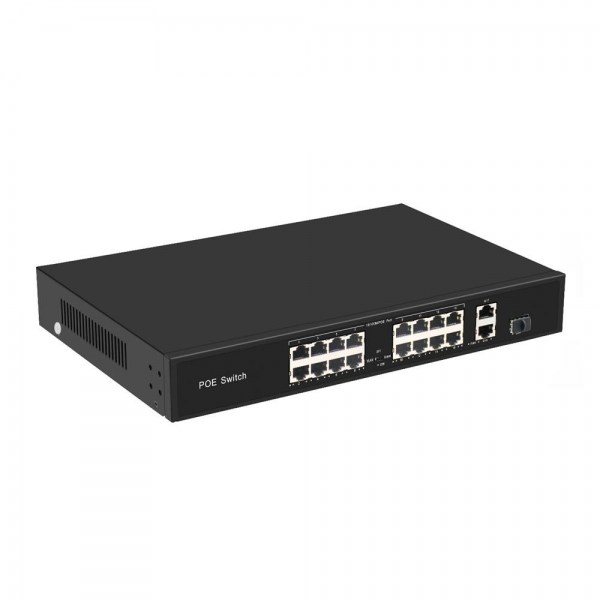

OPAX-1619 16 Ports10/100M POE Switch +2 Port Gigabit Uplink +1 Gigabit SFP Port 300W Rack Mount
OEM Factory 16 Port 10 / 100M Ethernet POE Switch for wifi AP IP Camera oem ethernet poe switch oem factory poe switch poe 10/100 ethernet switch
Product Name | 19-Ports10/100M PoE Switch | |||||||||
Model | OPAX-1619 | |||||||||
Connector Type | 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP Uplink Port | |||||||||
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z |
|||||||||
PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | |||||||||
Max each port: 15.4W (IEEE 802.3af) Max each port:30W (IEEE 802.3at) |
||||||||||
PoE compatibility: IEEE 802.3af/at adaptive | ||||||||||
PoE port output: DC48-55V | ||||||||||
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | ||||||||||
Network Media | 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
|||||||||
Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
|||||||||
PerformanceSpecification | Bandwidth: 9.2Gbps | |||||||||
MAC: 2K | ||||||||||
Packet Buffer Memory: 1M | ||||||||||
Packet Forwarding Rate: 6.8Mpps | ||||||||||
Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V5.76A, Power Budget: 300W,200W | |||||||||
LED Indicator |
|
|||||||||
Working Environment | Operating Temperature: -20? ~ 50?; Storage Temperature: -40? ~ 85?; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
|||||||||
Physical Parameter | Product Dimension (L*W*H): 320mm*210mm*46mm Package Dimension (L*W*H): 370mm*275mm*85mm N.W: 1.8KG G.W: 2.3KG |
|||||||||
Package Contents | 1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1 unit 5.1U Rack Mount: 1 pair |
|||||||||
MTBF | 100,000 hours | |||||||||
Certification | CE ,RoHS, FCC, CCC | |||||||||
Warranty | 2 years |
