Açıklama
ÜRÜN AÇIKLAMALARI

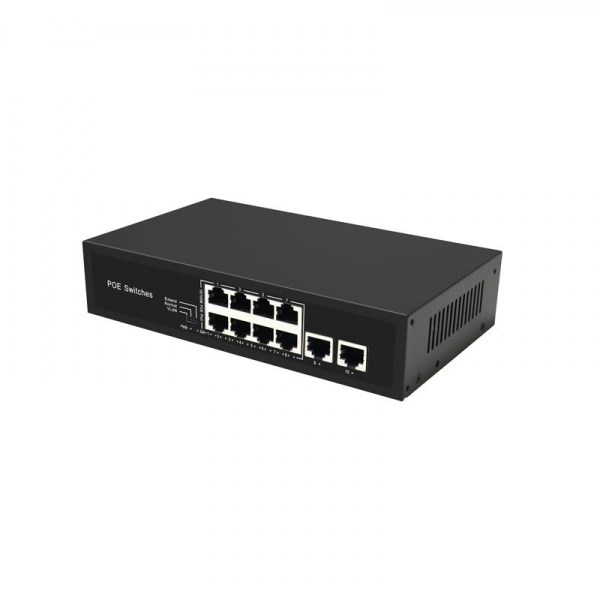

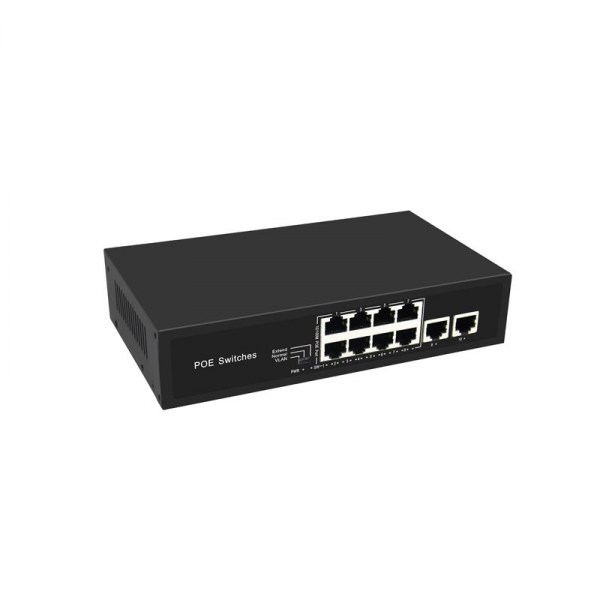

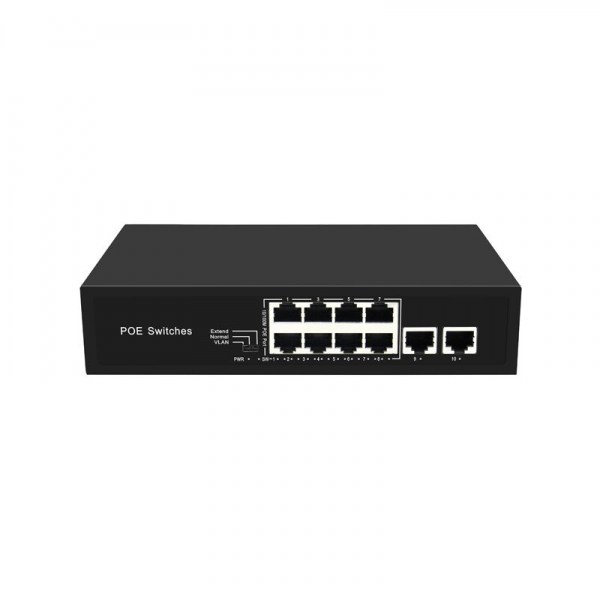

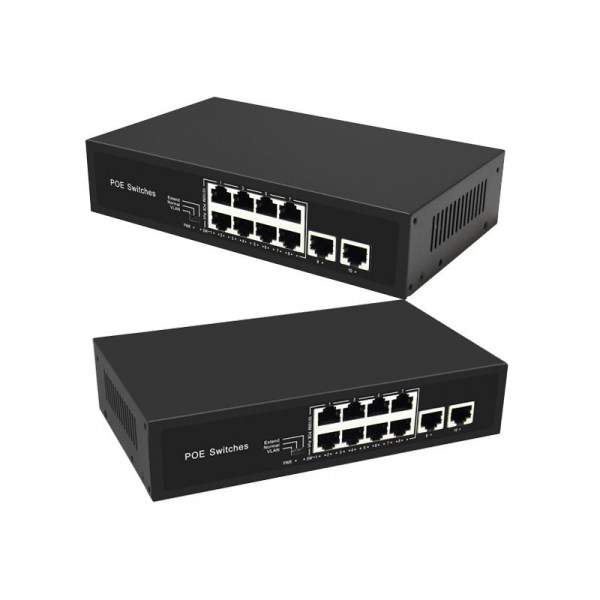

OPAX-0810 8 Ports10/100M POE Switch +2 Port Gigabit Uplink Port 120W
Fast Ethernet 100M 8 Port POE Network Switch 48V with 2 Gigabit Uplink RJ45 Ports poe switch 48v network switch 8 port port poe switch
| Product Name | 10-Ports PoE Switch |
| Model | OPAX-0810 |
| Connector Type | 8 Port 10/100M PoE + 2 Port 10/100/1000M Ethernet Uplink |
| Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab |
| PoE Parameters | PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC52V Power Pin : 1/2(+) ; 3/6 (-) |
| DIP | VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. |
| Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed. | |
| Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on. | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120W |
| Performance Specification | Bandwidth: 5.6Gbps |
| MAC Address: 2K | |
| Packet Buffer Memory: 768K | |
| Packet Forwarding Rate: 0.1488M pps/each port | |
| Forwarding Mode: Store-And-Forward | |
| Working Environment | Operating Temperature: -20? ~ 50?; Storage Temperature: -40? ~ 85?; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| Physical Parameter | Product Dimension (L*W*H): 200mm*120mm*45mm Package Dimension (L*W*H): 245mm*190mm*60mm N.W: 0.64KG G.W: 0.9KG |
| Package Contents | 1. Ethernet Switch:1 unit 2. User Guide:1 unit 3. Warranty Card:1 unit 4. Power Cord:1 unit 5. Wall Mount: 1 pair 6. 1U Rack Mount: 1 pair ( Optional ) |
| Certification | CE ,RoHS, FCC, CCC |
| MTBF | 100,000 hours |
| Warranty | 2 years warranty |
